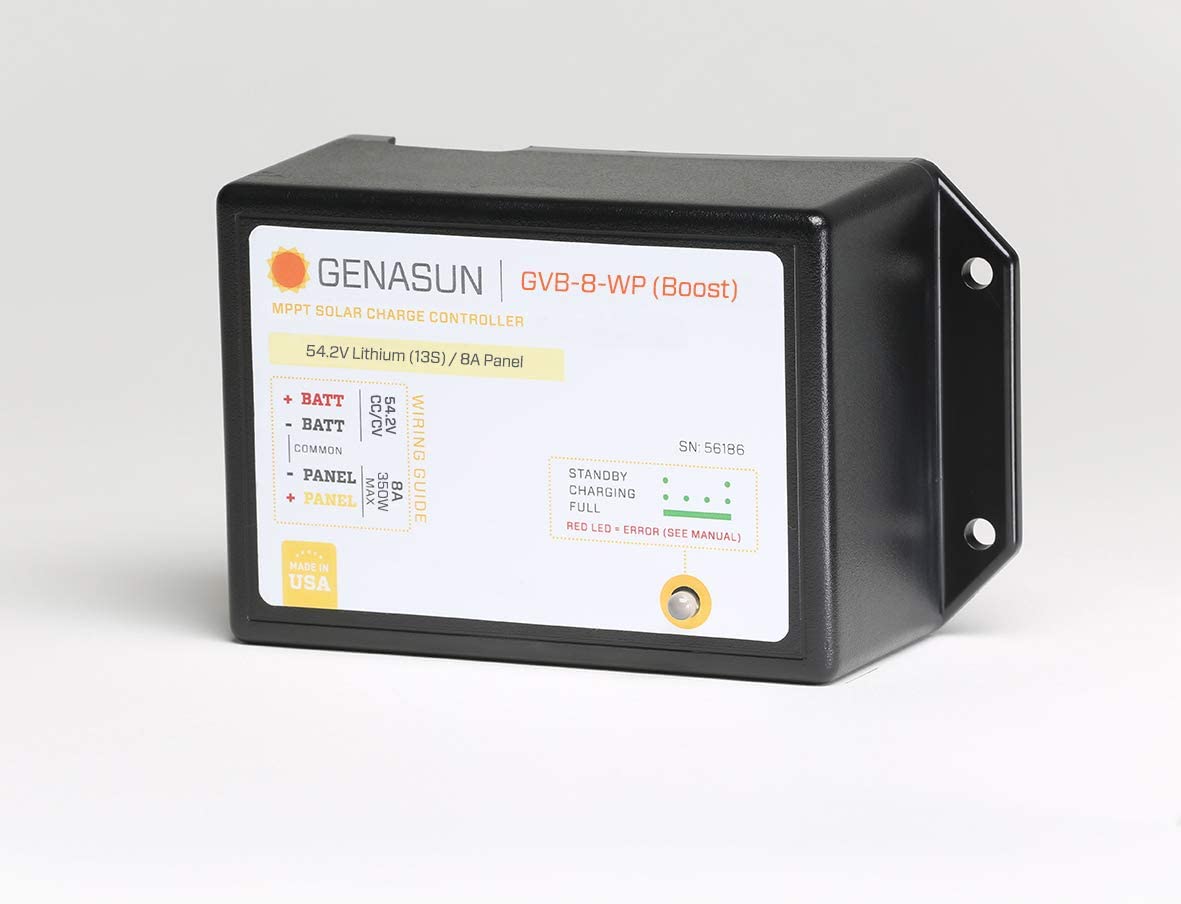

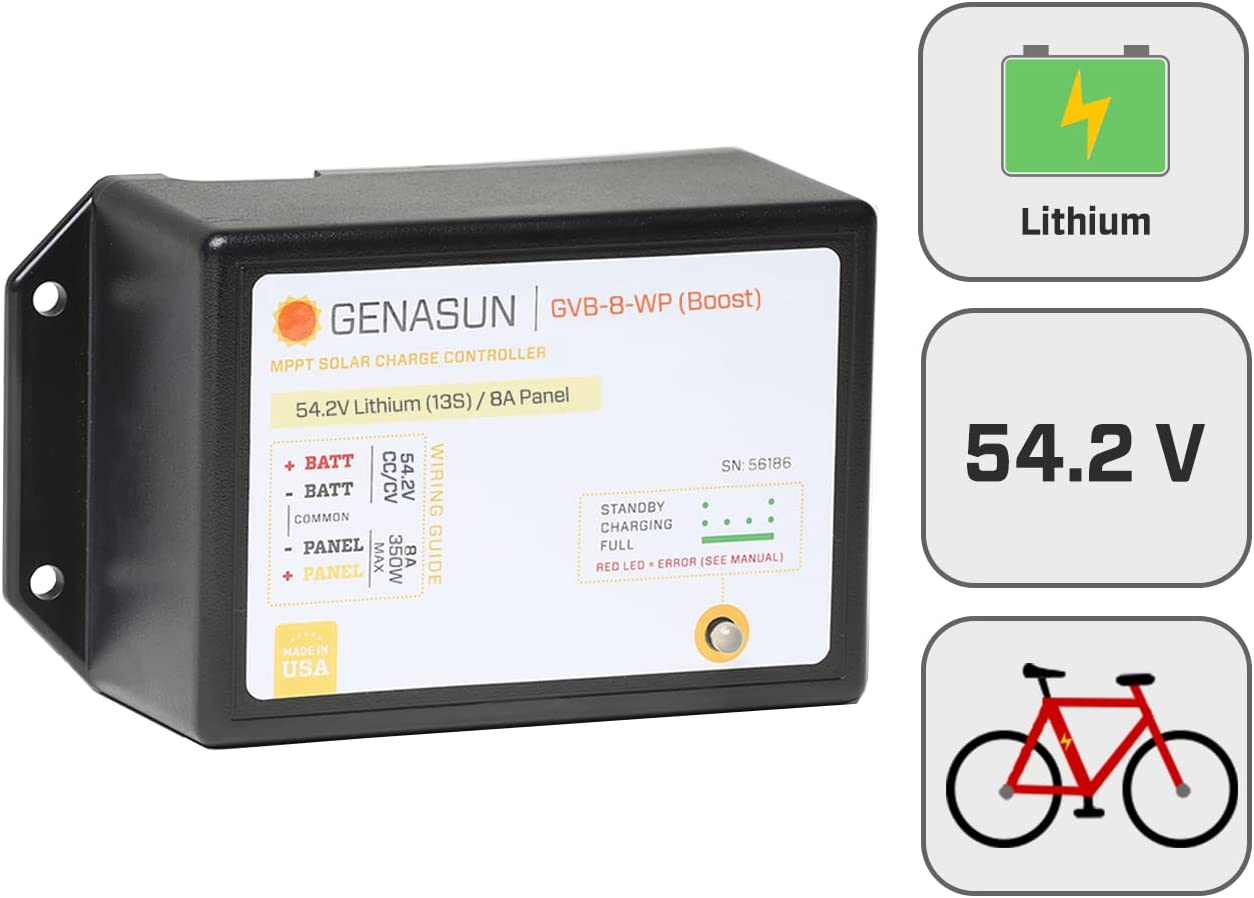

Genasun GVB-8-Li-54.2V-WP, 8A PREWIRED FOR POWERFILM Waterproof Solar Boost MPPT Charge Controller

Sold out
$340.00

*THIS BOOST CONTROLLER IS PREWIRED FOR POWERFILM SOLAR PANELS AND RAMBO EBIKES

GENASUN GVB-8-WP EBIKE COMBO

  • Solar BOOST controller for 350W solar panels/array, recommended current input 8A, programmed with a charge voltage CC/CV at 54.2V for 14S Lithium batteries (4.17V per cell)
  • High-Speed MPPT, the GVB-8-WP tracks the M.P.P. with a speed tracking of 15 Hz (15 times per sec.)
  • The unique Genasun technology allows to hit 99% Peak Efficiency, tiny dimensions, and tiny consumption (mA)
  • Waterproof, ideal for ebikes, golf carts, and electrical vehicles
  • 5-Year Warranty, Made in the USA, CE,FCC,RoHS certifications. Datasheet in the “Technical Specification” below

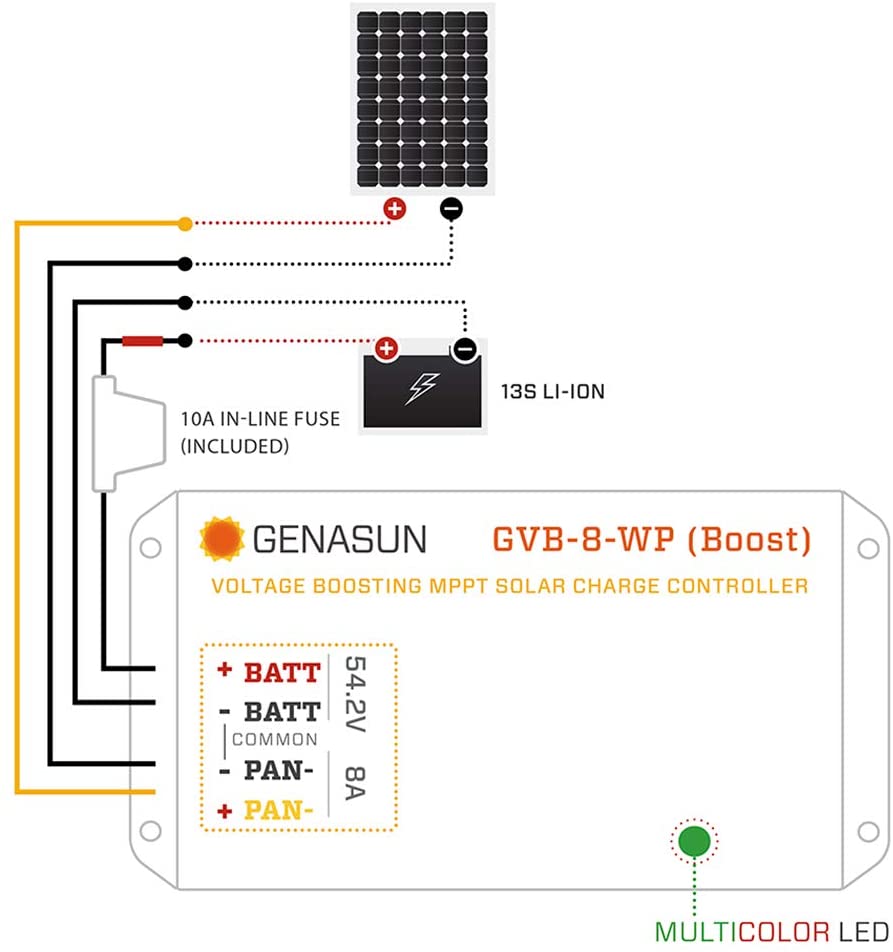

All weather charging, in any condition! The waterproof GVB-8-WP charge controller with MPPT allows a lower-voltage solar panel to charge higher-voltage batteries. The GVB-8-Li-54.2V-WP can charge a 13S Li-ion (48V nominal) battery with a 36/60-cell solar panel. True MPPT delivers consistent performance! The advanced electronics inside the controller are encased in a proprietary potting compound making them ideal for ebikes, marine, golf carts, and electrical vehicle applications where they are exposed to the elements.

Features:

    • MPPT BOOST technology
    • LED indicator for battery state of charge
    • 99% Peak Efficiency
    • High-speed MPPT Tracking (15 times per sec)
    • Advanced electronic protection (over-temperature, panel overload, battery and panel switched, reverse battery polarity, reverse panel polarity)
    • Advanced CC/CV charge profile
    • In-line Fuse 58V/10A battery side
    • Tiny self-consumption
    • Radio Silence, HAM Radio friendly
    • Made in the USA
    • 5-Year Warranty

Specifications:

  • Max. Recommended Panel Power: 350W
  • Rated Panel (Input) Current: 8A
  • Minimum Panel Voltage for Charging: 5V
  • Minimum Battery Voltage for Operation: 9.5V
  • Maximum Input Panel: 60V
  • Recommended Max Panel Voc at STC: 50V
  • Maximum Input Short Circuit Current: 8A
  • Charge Voltage CC/CV: 54.2V (13S with charge voltage 4.17V per cell)
  • Operating Temperature: -40°C – 85°C
  • Maximum Full Power Ambient: 70°C
  • Standby Consumption: 5mA
  • Environmental Protection: IP68 (Waterproof)
  • Connection: Flying Leads, 16 AWG tinned wire, pre-stripped
  • Weight: 10.3oz., 290 g
  • Dimensions: 5.5x3.2x2.2”
